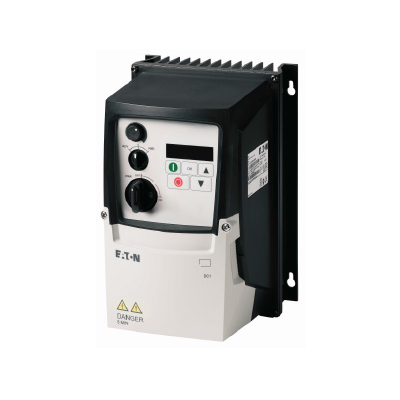

EATON-MOELLER DC1-S24D3FN-A6SN VFD 230V 0.37kW – Motor Inverter
The EATON-MOELLER DC1 DC1-S24D3FN-A6SN is a professional 0.37 kW variable frequency drive providing precise and energy-efficient motor speed control with 230V 1~ input and IP66 protection degree. Ideal for pumps, fans, conveyor belts, and industrial automation applications.
Technical Specifications:
- Product code: 169523
- Model: DC1-S24D3FN-A6SN
- Manufacturer: EATON-MOELLER
- Series: PowerXL DC1
- Motor power: 0.37 kW
- Rated output current (Ie) at 150% overload: 4.3 A
- Overload current (150% / 60 sec): 6.4 A
- Input voltage: 230V 1~, 380–480 V (±10%), 50/60 Hz
- Output voltage: 0 to Vin
- Output frequency: 0 – 500 Hz
- Overload capability: 150% for 60 sec / 175% for 2 sec
- Degree of protection: IP66
- Frame size: FS1
- EMC filter (Radio Interference Filter): No
- Integrated Brake Chopper: No (external option)
- Local controls: Yes (speed potentiometer, starter, padlock)
- Control modes: V/Hz, Sensorless Vector Control (SLV)
- Integrated PID controller: Yes
- Communication: Modbus RTU, CANopen (built-in)
- I/O signals: 4 digital inputs, 2 analog inputs, 1 digital/analog output, 1 relay output
- Operating temperature: -10°C to +50°C (IP20), -10°C to +40°C (IP66/IP55)
- Altitude (no derating): 0 – 1,000 m (1% derating per 100 m up to 4,000 m)
- Standards / Certifications: IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5-1, CE, RoHS
EATON-MOELLER DC1 DC1-S24D3FN-A6SN Variable Frequency Drive | 0.37 kW | 4.3 A | 230V 1~ | IP66. Professional VFD for AC motor speed control with built-in EMC filter, Modbus RTU and PID controller. Standards: IEC/EN 61800, CE | Product code: 169523
