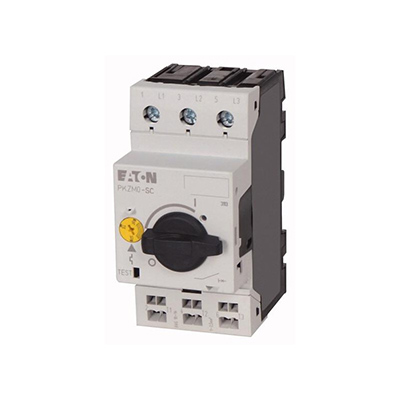

EATON-MOELLER PKZM0-0.16-SC Motor Protective Circuit Breaker
The PKZM0-0.16-SC motor protective circuit breaker from EATON-MOELLER is a professional motor protection device from the PKZM0-..-SC series, designed for comprehensive protection of three-phase motors.
Technical Specifications:
- Product code: 22.98.28
- Model: PKZM0-0.16-SC
- Adjustable current range: 0.1 – 0.16A
- Motor power at 400V: 0.06 kW
- Breaking capacity: 50 kA at 400V
- Trip class: CLASS 10A
- Number of poles: 3-pole
- Protection degree: IP20
- Operating temperature: -25°C to +55°C
- Mounting method: DIN rail
- Connection type: Screw/Spring clamp terminals
- Phase loss protection: Yes
- Manufacturer: EATON-MOELLER
- Series: PKZM0-..-SC Motor Protection
EATON-MOELLER PKZM0-0,16-SC motor protective circuit breaker – 0,1 – 0,16A · 0,06 kW · 50 kA at 400V. Comprehensive overload and short-circuit protection. Order now!
