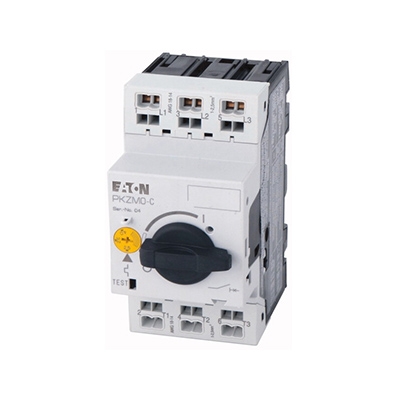

EATON-MOELLER PKZM0-0.63-C Motor Protective Circuit Breaker
The PKZM0-0.63-C motor protective circuit breaker from EATON-MOELLER is a professional motor protection device from the PKZM0-..-C series, designed for comprehensive protection of three-phase motors.
Technical Specifications:
- Product code: 22.96.72
- Model: PKZM0-0.63-C
- Adjustable current range: 0.40 – 0.63A
- Motor power at 400V: 0.18 kW
- Breaking capacity: 50 kA at 400V
- Trip class: CLASS 10A
- Number of poles: 3-pole
- Protection degree: IP20
- Operating temperature: -25°C to +55°C
- Mounting method: DIN rail
- Connection type: Spring clamp terminals
- Phase loss protection: Yes
- Manufacturer: EATON-MOELLER
- Series: PKZM0-..-C Motor Protection
EATON-MOELLER PKZM0-0,63-C motor protective circuit breaker – 0,40 – 0,63A · 0,18 kW · 50 kA at 400V. Comprehensive overload and short-circuit protection. Order now!
