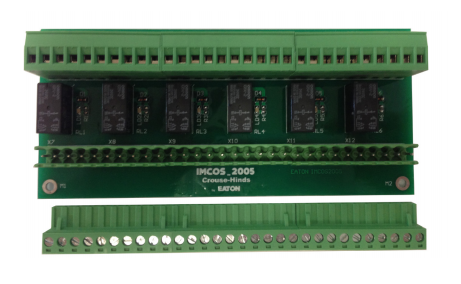

GITIESSE IMCOS-2005 Signal Relay PCB
The IMCOS-2005 signal relay PCB by GITIESSE is a high sensitivity board belonging to the IMCOS (Integrated Multimedia Communication System) product line, designed to switch audio signals by means of relays controlled through dry contacts. Driven by the IMCOS-3000 controller, it can be configured to provide up to 6 audio output lines from 6 audio input lines, making it ideal for marine public address and general alarm (PA/GA) systems.
Technical Specifications:
- Type: PCB card
- Mounting: Plate mounting or optional DIN rail mounting support
- Wiring: 5.08mm screw terminal blocks
- Power supply: 24V DC
- Power consumption: 2W
- 6 independent audio channels with individual status LED
- Fail-safe function with NO/NC contact
- Relay contact form: DPDT (2c), max switching current 1A
- Dimensions: 160 x 70 x 25 mm
- Weight: 0.2 kg
- Type approved by seven marine class societies
- Product code: IMCOS-2005
- Manufacturer: Gitiesse
The GITIESSE IMCOS-2005 signal relay PCB switches up to 6 audio channels via dry-contact relays for marine IMCOS PA/GA systems. Order now!
