GITIESSE IMCOS-5242 Bi-Directional Loudspeaker 100V 6W

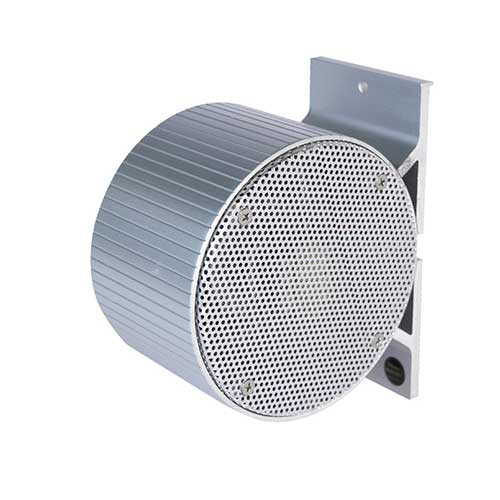

The IMCOS-5242 is a bi-directional aluminium loudspeaker, part of Gitiesse’s IMCOS integrated communication system, designed for installation in internal ship spaces such as corridors, on walls or ceilings. It runs on a 100V audio line and is type approved by marine class societies ABS, BV, CCS, DNV, GL, LR and RINA.
Technical Specifications:
- Product code: IMCOS-5242
- Type: Bi-directional 100V line loudspeaker
- Material: Aluminium / Anodised aluminium
- Mounting: Bracket
- Terminal: 1m cable
- Ingress protection: IP22
- Weight: 1.5 Kg
- Power: 6W maximum
- Operating temperature: -25°C to +70°C
- Effective frequency range: 180-15,000 Hz
- Dispersion (-6dB): 360 degrees at 1000/4000 Hz
- Max SPL (1W/1m): 97 dB
- Impedance: 100V transformer complete with internal fuse
- Six tap levels: 1_5=6.0W, 1_4=3.0W, 2_5=2.0W (factory default), 1_2=1.5W, 4_5=0.8W, 2_4=0.5W
- Self-resetting fuse keeps the audio line working in case of short circuit
- Integrated mounting bracket for simple installation
- Test certifications: EN 60068-2-2, EN 60068-2-30, EN 60068-2-1, EN 60529, EN 60068-2-6, EN 60065-1
- Type approved by marine class societies: ABS, BV, CCS, DNV, GL, LR, RINA
- Manufacturer: Gitiesse
GITIESSE IMCOS-5242 bi-directional loudspeaker for 100V line, ideal for internal ship spaces – 6W max power · IP22 · type approved by 7 class societies. Aluminium construction with self-resetting fuse. Order now!
